Adding a Foreign Key Constraint

Creating and Using Tables

3-10 Oracle Database 2 Day Developer's Guide

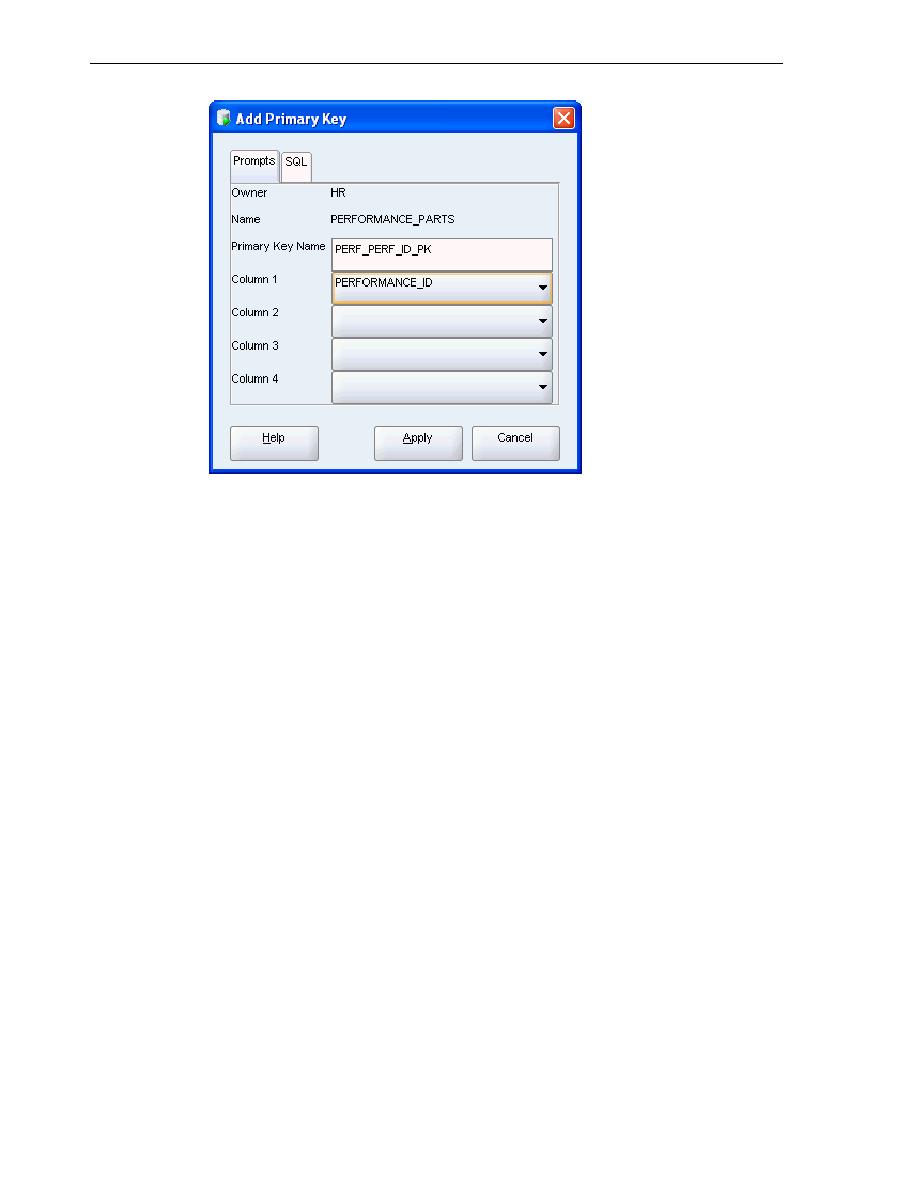

In the Confirmation window, click OK.

You have now created a primary key constraint for the

performance_parts

table.

The following SQL statement was added to your table definition:

CONSTRAINT "PERF_PERF_ID_PK" PRIMARY KEY ("PERFORMANCE_ID")

, you will create a primary key constraint on the

evaluations

table

by entering the required information directly in the SQL Statement window.

Example 34 Adding a Primary Key Constraint in SQL Script

ALTER TABLE evaluations

ADD CONSTRAINT eval_eval_id_pk PRIMARY KEY (evaluation_id);

The results of the script follow.

ALTER TABLE evaluations succeeded.

You just created a primary key

eval_eval_id_pk

on the

evaluations

table. If you

click the SQL tab, you will see the following SQL statement was added to your table
definition. You may need to click the Refresh icon.

CONSTRAINT "EVAL_EVAL_ID_PK" PRIMARY KEY ("EVALUATION_ID")

To add a foreign key constraint using the SQL Developer interface:

You will add two foreign key constraints to the

scores

table using the SQL Developer

graphical interface. You could also use the Edit Table window, as in the

NOT NULL

constraint, to accomplish this task.

In the Connections navigation hierarchy, the plus sign (+) next to Tables to expand
the list of tables.

Right-click the

scores

table.

Select Constraint, and then select Add Foreign Key.
