Remote Mirroring of an Oracle Database Using Data Replicator Software

In this example, three logical drives are being mirrored from the primary site:

erm_data_mirror

erm_log01_mirror

erm_log02_mirror

Each of these logical drives has an associated Snapshot volume. There are three volumes
that contain the volume copies of the snapshots.

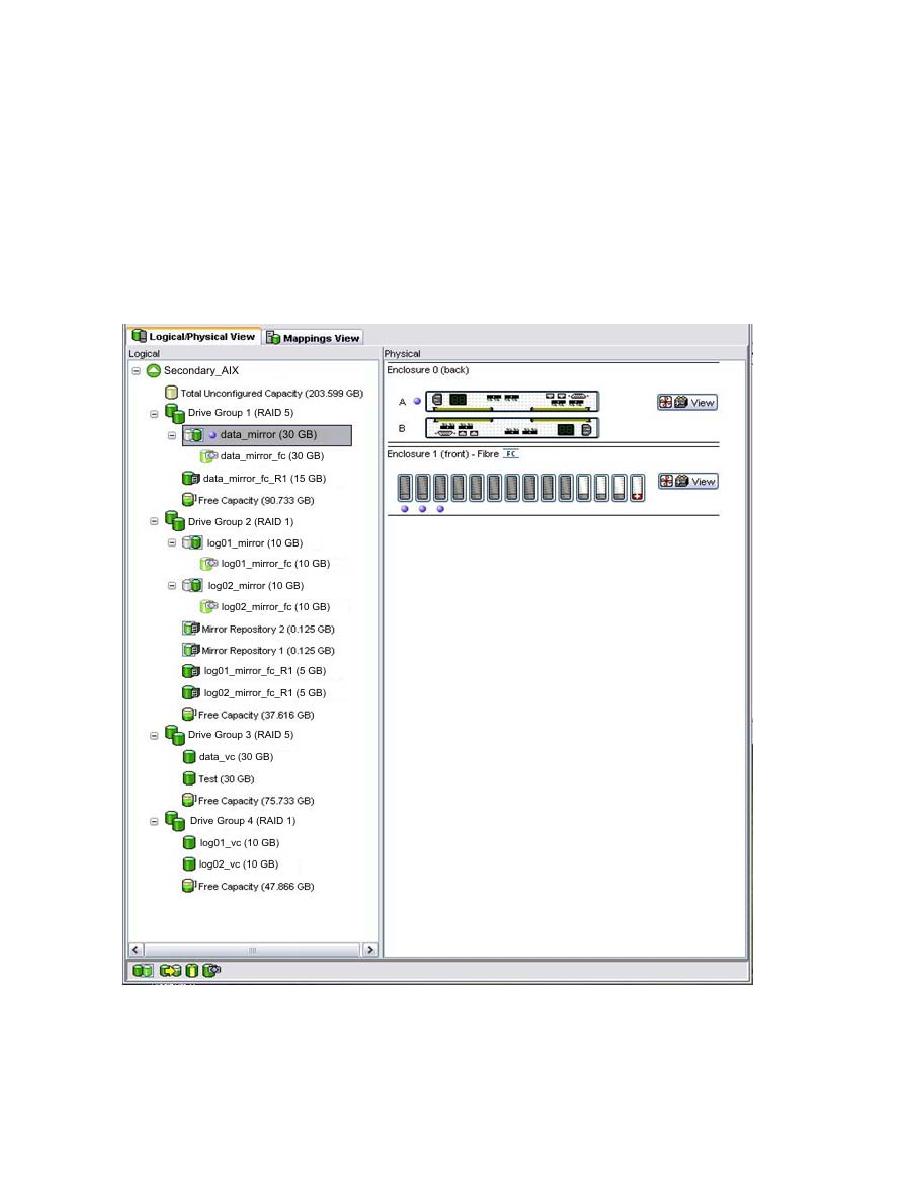

Figure 2-2 Example of a Site Configuration Using Remote Mirroring
